Light Curtain 1200×1000MM MRL Stainless Steel Passenger Elevator

  • 1
  • 2

Brand Name : SUNNY

Model Number : Machine Roomless Elevator

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1set

Price : $7000-12000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Set/ Year

Delivery Time : 15~30 days

Packaging Details : container

Name : Passenger Elevator

Load : 450~1600kg

Speed : 1.0-2.0m/s

Elevator Door : Center Opening Door

Material : Stainless Steel 304

Floor : PVC

Machine room : Without Machine Room

Safety Fuction : Light Curtain

Model : Passenger Elevator

Type : Passenger Elevator

Contact Now

1600kg Machine Room Less Passenger Elevator with Superior Technology

Specification:

Passenger elevators descriptions with machine room less:

Persons

Loading Capacity

(KG)

Speed

(m/s)

 Model Number

Inner

Dimension

(mm)

Net Door Size

(mm)

Top Floor

Height

(mm)

Hoistway

(mm)

 Pit Depth
6 450 1.0 FAKU450 1200×1000 700×2100 4000 2050×1750 1600
1.5-1.75 4300 1600
2.0 4400 1800
8 630 1.0 FAKU630 1400×1100 800×2100 4300 2250×1800 1600
1.5-1.75 4600 1600
2.0 4600 1800
10 800 1.0 FAKU800 1400×1350 800×2100 4500 2250×1900 1600
1.5-1.75 4700 1700
2.0 4800 1800
13 1000 1.0 FAKU1000 1600×1400 900×2100 4600 2450×2000 1600
1.5-1.75 4800 1800
2.0 5000 1900
16 1250 1.0 FAKU1250 1750×1600 1000×2100 4700 2700×2100 1800
1.5-1.75 4900 1800
2.0 5200 2000
21 1600 1.0 FAKU1600 1950×1750 1100×2100 4600 2800×2400 1600
1.5-1.75 4700 1800
2.0 5000 1800

How does MRL elevator work?
How MRL elevators work: Machine-room-less elevators utilize a gearless traction machine located in the hoistway. The use of a counterweight assists the machine in turning the elevator sheave, which moves the cab through the hoistway.

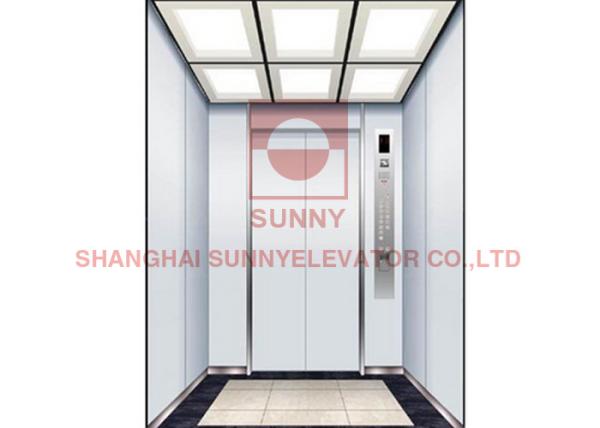

Light Curtain 1200×1000MM MRL Stainless Steel Passenger Elevator

Light Curtain 1200×1000MM MRL Stainless Steel Passenger Elevator

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
